Cistern Pumps

CISTERN PUMPS FOR RAINWATER HARVESTING

Pedrollo Cistern Pumps

Pedrollo UP, the best choice for cistern pumps.

  • Flat curves, especially the 1½ & 2 HP models.
  • Low submergence requirements (2½"!), which means maximum tank utilization
  • Automatic venting, no holes to drill in the discharge piping.Stainless housing and Noryl impellers & diffusers.​​
  • Dual seals
  • Available in 240V, both 1Ø and 3Ø. 2 HP pumps available in 480V/3Ø
  • Built in Italy, in an ISO 9001 facility
  • 2 year warranty

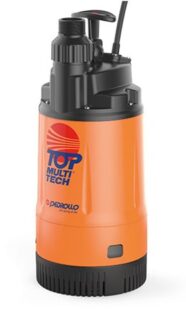

Introducing the new best choice for AUTOMATIC cistern pumps, the Pedrollo TOP Multi-Tech

  • Sized right for garden hose and other small irrigation loads
  • Best efficiency point approximately 14 gpm @ 100' TDH
  • Automatic operation
  • Low submergence requirements (1½"!), which means maximum tank utilization
  • Equipment package includes 1 Liter pressure tank, to prevent short cycling
  • Available in 120 and 240V, 1Ø.
  • Built in Italy, in an ISO 9001 facility
  • 2 year warranty

Myers/Pentair Pumps

Pentair Intelliboost
Intelliboost Brochure

120V Myers/Pentair Cistern Pumps

Georgia Water Tanks now stocks the Myers (division of Pentair) 20 MD cistern pump. Available in 120V only, it provides over 15 gpm at 50 PSI, perfect for irrigating community gardens and city lots. It's 5" submergence requirement is one of the lowest of any​ vertical pump.

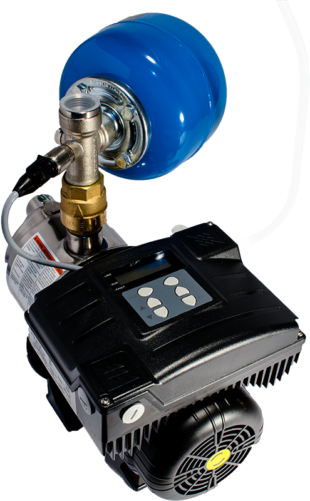

Berkley/Pentair Intelliboost

Georgia Water Tanks now stocks the Berkley Intelliboost VFD pump system. It is a pre-assembled and pre-wired unit made up of a pump, variable speed drive, expansion tank, fittings, and a pressure transducer. The INTELLIBOOST pump is a horizontal multi-stage pump for pumping clean water only. Designed for 10 gpm @ 40 psi, this p

The pump is started and stopped by the VFD, which adjusts the motor speed according to demand. The VFD maintains a constant pressure according to the selected set point. As the water demand decreases, the device reduces the pump speed until it stops. The expansion tank minimizes the pump start-up and shutdown cycles.

NOTE: The pump is designed for use with clear water. Application Limits Temperature of pumped liquid: from +41°F To +122°F (+5°C to +50°C) in compatibility with the pump materials. Maximum ambient temperature: +104°F (+40°C). Max. operating pressure: 116 PSI.

DP Pumps

DP Pumps is a Dutch company, manufacturing vertical multistage and close-coupled end suction centrifugal pumps. Click on the image below to see the brochure.

DPV

The DPV is a vertical multistage pump in either SS304 or SS316. The DPVF is available with NSF certification, ANSI flanges, and NEMA motor stools. This pump is available with many different types of connections, including flanged, threaded, triclamp and Victaulic. This pump is now offered with a low NPSH impeller as well as myriad seal options.

Max Head – 1000 ft.

Max Flow – 800 USGPM

Max Temperature – 300 F​​​​

DPHM

The DPHM is a close coupled multistage pump. This is available in small sizes and is a favorite among original equipment manufacturers.

Max Head – 230 ft.

Max Flow – 50 USGPM

Max Temperature – 190 F

Pedrollo Pump Performance

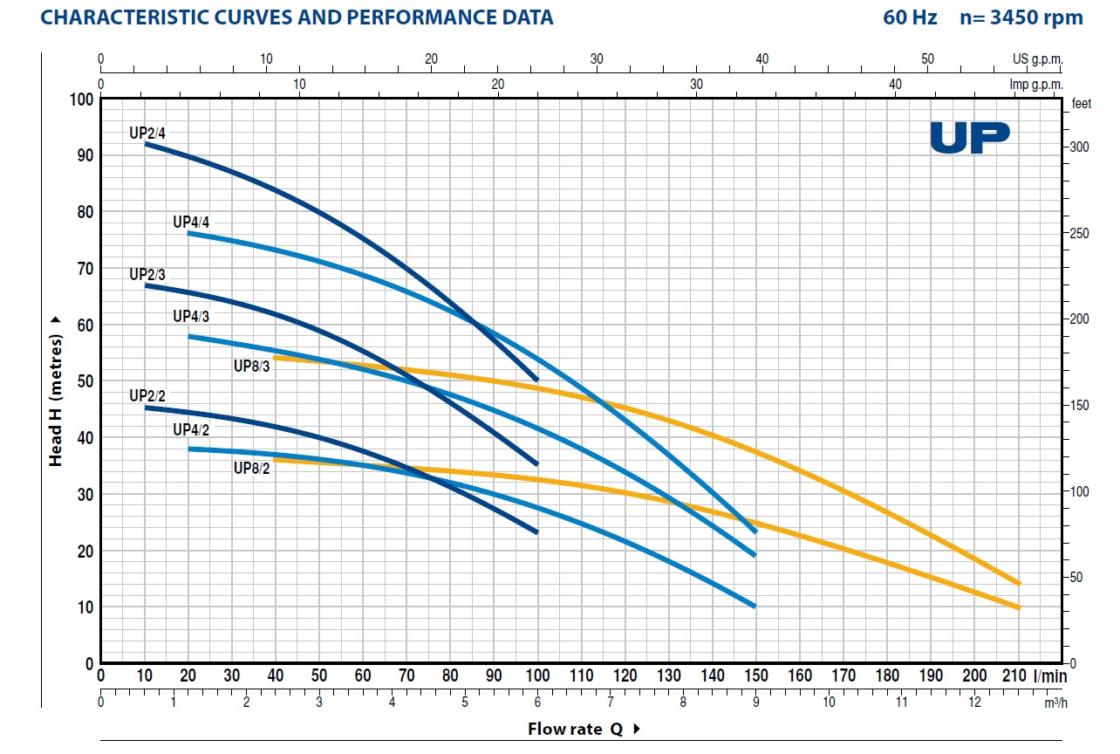

Pedrollo UP Family Curve
Pedrollo UP Models & Horsepower
Model HP 230V 1Ø 230V 3Ø 480V 3Ø
UP2/2 1 5.8 Amps 3.8 Amps 2.2 Amps
UP2/3 1.5 8 Amps 5.3 Amps 3.1 Amps
UP2/4* 2 10 Amps 6 Amps 3.5 Amps
UP4/2 1 5.8 Amps 3.8 Amps 2.2 Amps
UP4/3 1.5 8 Amps 5.3 Amps 3.1 Amps
UP4/4* 2 10 Amps 6 Amps 3.5 Amps
UP8/2 1.5 8 Amps 5.3 Amps 3.1 Amps
UP8/3* 2 10 Amps 6 Amps 3.5 Amps

Myers / Pentair Pump Performance

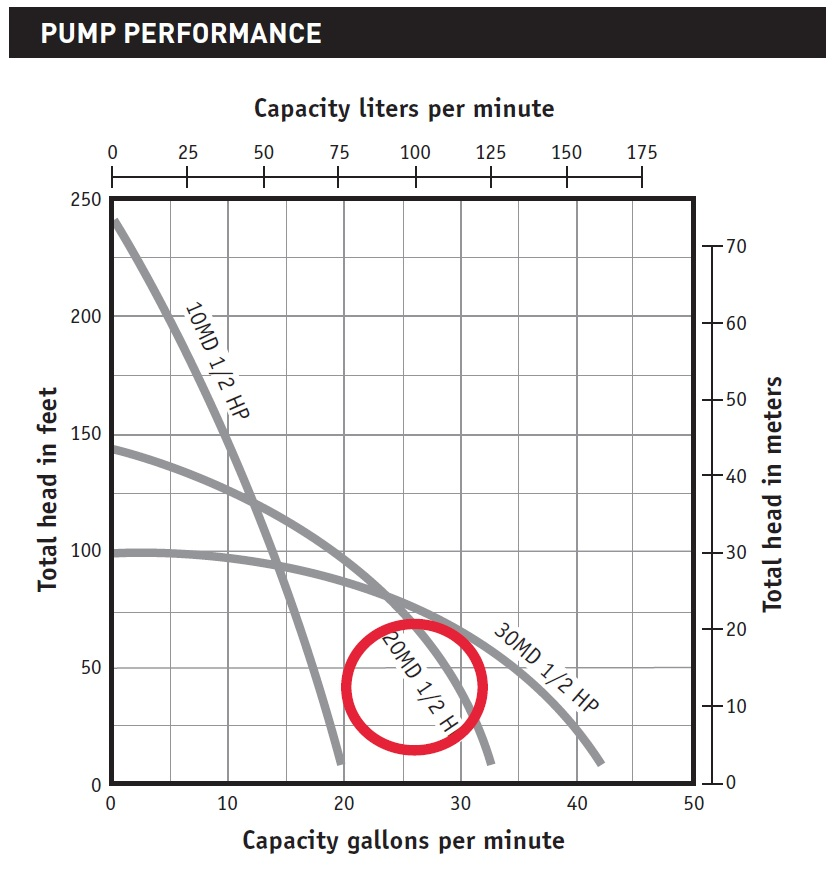

Myers Pentair MD Cistern Pump Curve
