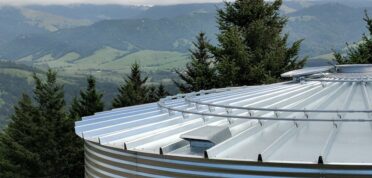

Above Ground Steel Water Storage Tanks
Models, Sizes, and Useable Capacity
Useable Capacity is calculated based on typical submersible pump level requirements and tank overflow sizes. Please contact us for drawings and foundation requirements
Above-Ground Corrugated Tank Models, Sizes, and Capacities
| Bottom Outlet Capacity (gallons) | Side Outlet Capacity (gallons) | Diameter (feet) | Eave Height | Total Height | Model Number | 30° Roof PDF Drawing |
|---|---|---|---|---|---|---|
| 725 | 513 | 6 | 3' 9" | 5' 2" | GWT601 | |
| 1,503 | 1,291 | 6 | 7' 5" | 8' 9" | GWT602 | 602 30° PDF |
| 2,281 | 2,069 | 6 | 11' 1" | 12' 4" | GWT603 | |
| 3,059 | 2,846 | 6 | 14' 9" | 15' 10" | GWT604 | 602 30° PDF |
| 3,837 | 3,624 | 6 | 18' 5" | 19' 11" | GWT605 | 605 30° PDF |
| 4,614 | 4,402 | 6 | 22' 1" | 23' 5" | GWT606 | 606 30° PDF |
| 5,392 | 5,180 | 6 | 25' 9" | 26' 11" | GWT607 | |
| 6,170 | 5,958 | 6 | 29' 5" | 30' 5" | GWT608 | |
| 1,631 | 1,154 | 9 | 3' 9" | 6' 6" | GWT901 | |
| 3,381 | 2,904 | 9 | 7' 5" | 9' 7" | GWT902 | 902 30° PDF |
| 5,132 | 4,654 | 9 | 11' 1" | 13' 7" | GWT903 | 903 PDF |
| 6,882 | 6,405 | 9 | 14' 9" | 17' 2" | GWT904 | 905 30° PDF |
| 8,632 | 8,155 | 9 | 18' 5" | 20' 9" | GWT905 | 905 30° PDF |
| 10,383 | 9,905 | 9 | 22' 1" | 24' 3" | GWT906 | 906 30° PDF |
| 12,133 | 11,656 | 9 | 25' 9" | 27' 9" | GWT907 | |
| 13,883 | 13,406 | 9 | 29' 5" | 31' 3" | GWT908 | |
| 2,900 | 2,051 | 12 | 3' 9" | 7' 3" | GWT1201 | |
| 6,011 | 5,163 | 12 | 7' 5" | 10' 9" | GWT1202 | 1202 30° PDF |
| 9,123 | 8,274 | 12 | 11' 1" | 14' 4" | GWT1203 | 1203 30° PDF |
| 12,235 | 11,386 | 12 | 14' 9" | 17' 11" | GWT1204 | 1204 30° PDF |
| 15,346 | 14,498 | 12 | 18' 5" | 21' 5" | GWT1205 | 1205 30° PDF |
| 18,458 | 17,609 | 12 | 22' 1" | 25' 0" | GWT1206 | 1206 30° PDF |
| 21,570 | 20,721 | 12 | 25' 9" | 28' 7" | GWT1207 | |
| 24,681 | 23,833 | 12 | 29' 5" | 32' 2" | GWT1208 | |
| 4,530 | 3,204 | 15 | 3' 9" | 8' 2" | GWT1501 | |
| 9,392 | 8,066 | 15 | 7' 5" | 11' 10" | GWT1502 | 1502 30° PDF |
| 14,254 | 12,928 | 15 | 11' 1" | 15' 6" | GWT1503 | 1503 30° PDF |
| 19,116 | 17,790 | 15 | 14' 9" | 19' 2" | GWT1504 | 1504 30° PDF |
| 23,978 | 22,652 | 15 | 18' 5" | 22' 10" | GWT1505 | 1505 30° PDF |
| 28,840 | 27,514 | 15 | 22' 1" | 26' 6" | GWT1506 | 1506 30° PDF |
| 33,702 | 32,376 | 15 | 25' 9" | 30' 2" | GWT1507 | |
| 38,564 | 37,238 | 15 | 29' 5" | 33' 10" | GWT1508 | |
| 6,524 | 4,614 | 18 | 3' 9" | 9' 1" | GWT1801 | |
| 13,525 | 11,616 | 18 | 7' 5" | 12' 9" | GWT1802 | |
| 20,526 | 18,617 | 18 | 11' 1" | 16' 5" | GWT1803 | 1803 30° PDF |
| 27,528 | 25,618 | 18 | 14' 9" | 20' 1" | GWT1804 | 1804 30° PDF |
| 34,529 | 32,620 | 18 | 18' 5" | 23' 9" | GWT1805 | |
| 41,530 | 39,621 | 18 | 22' 1" | 27' 5" | GWT1806 | 1806 30° PDF |
| 48,532 | 46,622 | 18 | 25' 9" | 31' 1" | GWT1807 | |
| 55,533 | 53,623 | 18 | 29' 5" | 34' 9" | GWT1808 | |
| 8,880 | 6,281 | 21 | 3' 9" | 10' 0" | GWT2101 | |
| 18,409 | 15,810 | 21 | 7' 5" | 13' 8" | GWT2102 | 2102 30° PDF |
| 27,939 | 25,340 | 21 | 11' 1" | 17' 4" | GWT2103 | 2103 30° PDF |
| 37,468 | 34,869 | 21 | 14' 9" | 21' 0" | GWT2104 | 2104 30° PDF |
| 46,998 | 44,399 | 21 | 18' 5" | 24' 8" | GWT2105 | 2105 30° PDF |
| 56,527 | 53,928 | 21 | 22' 1" | 28' 4" | GWT2106 | 2106 30° PDF |
| 66,057 | 63,458 | 21 | 25' 9" | 32' 0" | GWT2107 | |
| 75,586 | 72,987 | 21 | 29' 5" | 35' 8" | GWT2108 | |
| 11,598 | 8,204 | 24 | 3' 9" | 10' 11" | GWT2401 | |
| 24,045 | 20,650 | 24 | 7' 5" | 14' 7" | GWT2402 | 2402 30° PDF |
| 36,491 | 33,097 | 24 | 11' 1" | 18' 3" | GWT2403 | 2403 30° PDF |
| 48,938 | 45,544 | 24 | 14' 9" | 21' 11" | GWT2404 | 2404 30° PDF |
| 61,385 | 57,990 | 24 | 18' 5" | 25' 7" | GWT2405 | 2405 30° PDF |
| 73,832 | 70,437 | 24 | 22' 1" | 29' 3" | GWT2406 | 2406 30° PDF |
| 86,278 | 82,884 | 24 | 25' 9" | 32' 11" | GWT2407 | |
| 98,725 | 95,330 | 24 | 29' 5" | 36' 7" | GWT2408 | |
| 14,679 | 10,383 | 27 | 3' 9" | 11' 11" | GWT2701 | |
| 30,432 | 26,135 | 27 | 7' 5" | 15' 7" | GWT2702 | 2702 30° PDF |
| 46,184 | 41,888 | 27 | 11' 1" | 19' 3" | GWT2703 | 2703 30° PDF |
| 61,937 | 57,641 | 27 | 14' 9" | 22' 11" | GWT2704 | 2704 30° PDF |
| 77,690 | 73,394 | 27 | 18' 5" | 26' 7" | GWT2705 | 2705 30° PDF |
| 93,443 | 89,147 | 27 | 22' 1" | 30' 3" | GWT2706 | 2706 30° PDF |
| 109,196 | 104,900 | 27 | 25' 9" | 33' 11" | GWT2707 | |
| 124,949 | 120,652 | 27 | 29' 5" | 37' 7" | GWT2708 | |
| 18,122 | 12,818 | 30 | 3' 9" | 12' 10" | GWT3001 | |
| 37,570 | 32,266 | 30 | 7' 5" | 16' 6" | GWT3002 | 3002 30° PDF |
| 57,018 | 51,714 | 30 | 11' 1" | 20' 2" | GWT3003 | 3003 30° PDF |
| 76,466 | 71,162 | 30 | 14' 9" | 23' 10" | GWT3004 | 3004 30° PDF |
| 95,914 | 90,610 | 30 | 18' 5" | 27' 6" | GWT3005 | 3005 30° PDF |
| 115,362 | 110,058 | 30 | 22' 1" | 31' 2" | GWT3006 | 3006 30° PDF |
| 134,810 | 129,506 | 30 | 25' 9" | 34' 10" | GWT3007 | |
| 154,258 | 148,954 | 30 | 29' 5" | 38' 6" | GWT3008 | |
| 21,928 | 15,510 | 33 | 3' 9" | 13' 9" | GWT3301 | |
| 45,460 | 39,042 | 33 | 7' 5" | 17' 5" | GWT3302 | |
| 68,992 | 62,574 | 33 | 11' 1" | 21' 1" | GWT3303 | 3303 30° PDF |
| 92,524 | 86,106 | 33 | 14' 9" | 24' 9" | GWT3304 | 3304 30° PDF |
| 116,056 | 109,638 | 33 | 18' 5" | 28' 5" | GWT3305 | 3305 30° PDF |
| 139,588 | 133,170 | 33 | 22' 1" | 32' 1" | GWT3306 | 3306 30° PDF |
| 163,120 | 156,702 | 33 | 25' 9" | 35' 9" | GWT3307 | |
| 186,652 | 180,234 | 33 | 29' 5" | 39' 5" | GWT3308 | |
| 26,096 | 18,458 | 36 | 3' 9" | 14' 8" | GWT3601 | |
| 54,101 | 46,463 | 36 | 7' 5" | 18' 4" | GWT3602 | |
| 82,106 | 74,468 | 36 | 11' 1" | 22' 0" | GWT3603 | |
| 110,111 | 102,473 | 36 | 14' 9" | 25' 8" | GWT3604 | 3604 30° PDF |
| 138,116 | 130,478 | 36 | 18' 5" | 29' 4" | GWT3605 | 3605 30° PDF |
| 166,121 | 158,483 | 36 | 22' 1" | 33' 0" | GWT3606 | 3606 30° PDF |
| 194,126 | 186,488 | 36 | 25' 9" | 36' 8" | GWT3607 | |
| 222,131 | 214,493 | 36 | 29' 5" | 40' 4" | GWT3608 | |
| 30,626 | 21,662 | 39 | 3' 9" | 15' 6" | GWT3901 | |
| 63,493 | 54,529 | 39 | 7' 5" | 19' 2" | GWT3902 | |
| 96,360 | 87,396 | 39 | 11' 1" | 22' 10" | GWT3903 | |
| 129,227 | 120,264 | 39 | 14' 9" | 26' 6" | GWT3904 | 3904-WT-CHR rev-a |
| 162,094 | 153,131 | 39 | 18' 5" | 30' 2" | GWT3905 | 3905 30° PDF |
| 194,961 | 185,998 | 39 | 22' 1" | 33' 10" | GWT3906 | 3906 30° PDF |
| 227,828 | 218,865 | 39 | 25' 9" | 37' 6" | GWT3907 | |
| 260,695 | 251,732 | 39 | 29' 5" | 41' 2" | GWT3908 | |
| 35,519 | 25,123 | 42 | 3' 9" | 16' 7" | GWT4201 | |
| 73,637 | 63,241 | 42 | 7' 5" | 20' 3" | GWT4202 | |
| 111,755 | 101,359 | 42 | 11' 1" | 23' 11" | GWT4203 | |
| 149,873 | 139,477 | 42 | 14' 9" | 27' 7" | GWT4204 | 4204 30° PDF |
| 187,991 | 177,595 | 42 | 18' 5" | 31' 3" | GWT4205 | 4205 30° PDF |
| 226,109 | 215,713 | 42 | 22' 1" | 34' 11" | GWT4206 | 4206 30° PDF |
| 264,227 | 253,831 | 42 | 25' 9" | 38' 7" | GWT4207 | |
| 302,345 | 291,949 | 42 | 29' 5" | 42' 3" | GWT4208 | |
| 46,392 | 32,814 | 48 | 3' 9" | 18' 5" | GWT4801 | |
| 96,179 | 82,601 | 48 | 7' 5" | 22' 1" | GWT4802 | |
| 145,966 | 132,388 | 48 | 11' 1" | 25' 9" | GWT4803 | |
| 195,753 | 182,174 | 48 | 14' 9" | 29' 5" | GWT4804 | 4804 30° PDF |
| 245,539 | 231,961 | 48 | 18' 5" | 33' 1" | GWT4805 | 4805 30° PDF |
| 295,326 | 281,748 | 48 | 22' 1" | 36' 9" | GWT4806 | 4806 30° PDF |
| 345,113 | 331,535 | 48 | 25' 9" | 40' 5" | GWT4807 | |
| 394,900 | 381,321 | 48 | 29' 5" | 44' 1" | GWT4808 |

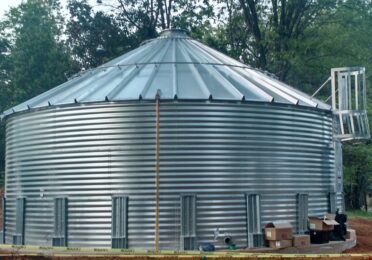

Click the image or the text below
for guide specs and CAD drawings.
